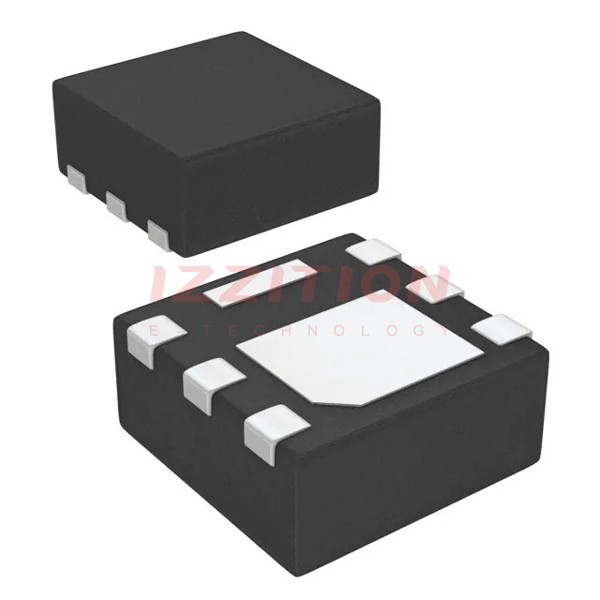

| Part Number | IRLHS2242TRPBF | IRLHS6242TRPBF | IRLHS2242TR2PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete |
| FET Type | P-Channel | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 7.2A (Ta), 15A (Tc) | 10A (Ta), 12A (Tc) | 7.2A (Ta), 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | 2.5V, 4.5V | - |
| Rds On (Max) @ Id, Vgs | 31mOhm @ 8.5A, 4.5V | 11.7mOhm @ 8.5A, 4.5V | 31mOhm @ 8.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 10µA | 1.1V @ 10µA | 1.1V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V | 14 nC @ 4.5 V | 12 nC @ 10 V |
| Vgs (Max) | ±12V | ±12V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 877 pF @ 10 V | 1110 pF @ 10 V | 877 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.1W (Ta), 9.6W (Tc) | 1.98W (Ta), 9.6W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) | 6-PQFN (2x2) | 6-PQFN (2x2) |
| Package / Case | 6-PowerVDFN | 6-PowerVDFN | 6-PowerVDFN |
