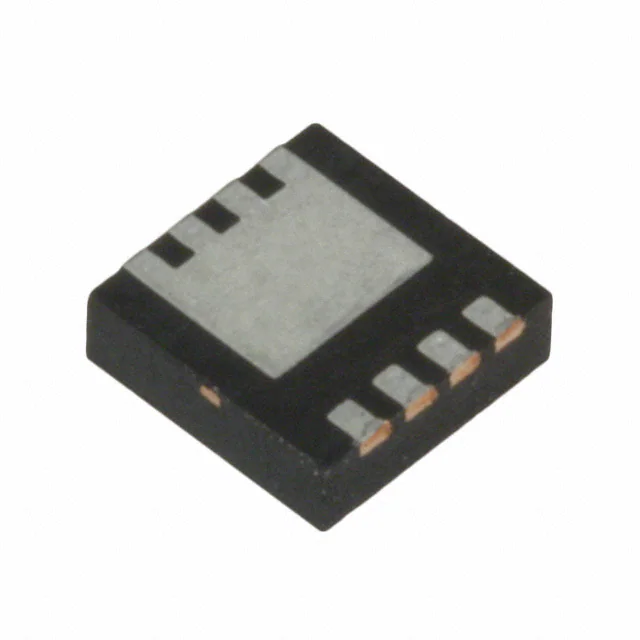

| Part Number | IRLHM620TR2PBF | IRLHM620TRPBF | IRLHM630TR2PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 40A (Tc) | 26A (Ta), 40A (Tc) | 21A (Ta), 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 2.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 20A, 4.5V | 2.5mOhm @ 20A, 4.5V | 3.5mOhm @ 20A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 50µA | 1.1V @ 50µA | 1.1V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 78 nC @ 4.5 V | 78 nC @ 4.5 V | 62 nC @ 4.5 V |
| Vgs (Max) | - | ±12V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3620 pF @ 10 V | 3620 pF @ 10 V | 3170 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 2.7W (Ta), 37W (Tc) | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PQFN (3x3) | PQFN (3x3) | PQFN (3x3) |
| Package / Case | 8-VQFN Exposed Pad | 8-PowerTDFN | 8-VQFN Exposed Pad |
