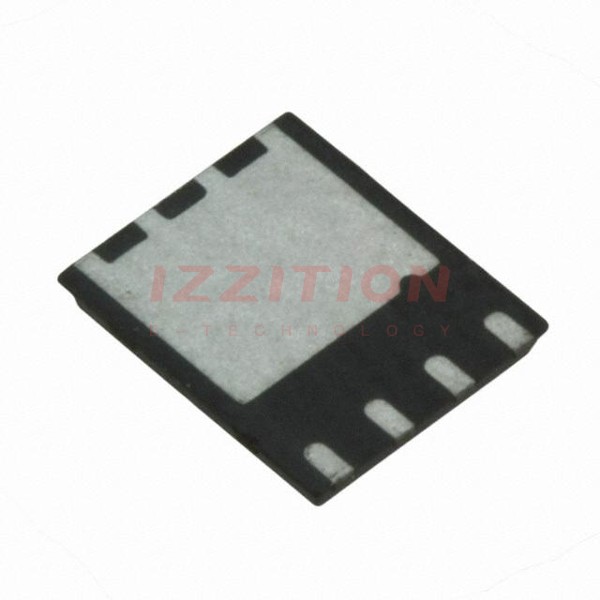

| Part Number | IRLH5036TR2PBF | IRLH5036TRPBF | IRLH5034TR2PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 100A (Tc) | 20A (Ta), 100A (Tc) | 29A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 50A, 10V | 4.4mOhm @ 50A, 10V | 2.4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 150µA | 2.5V @ 150µA | 2.5V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 90 nC @ 10 V | 90 nC @ 10 V | 82 nC @ 10 V |
| Vgs (Max) | - | ±16V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 5360 pF @ 25 V | 5360 pF @ 25 V | 4730 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 3.6W (Ta), 160W (Tc) | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
