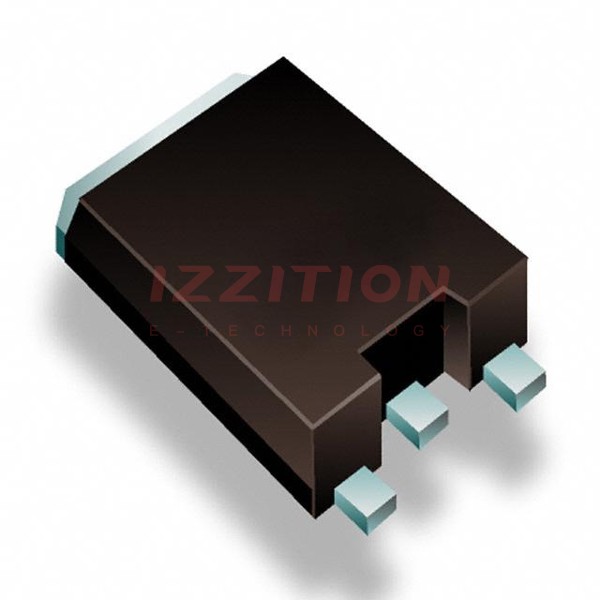

| Part Number | IRLBL1304 | IRLBA1304 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 185A (Tc) | 185A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 110A, 10V | 4mOhm @ 110A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 140 nC @ 4.5 V | 140 nC @ 4.5 V |
| Vgs (Max) | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 7660 pF @ 25 V | 7660 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 300W (Tc) | 300W (Tc) |
| Operating Temperature | - | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Supplier Device Package | SUPER D2-PAK | SUPER-220™ (TO-273AA) |
| Package / Case | SUPER D2-PAK | TO-273AA |
