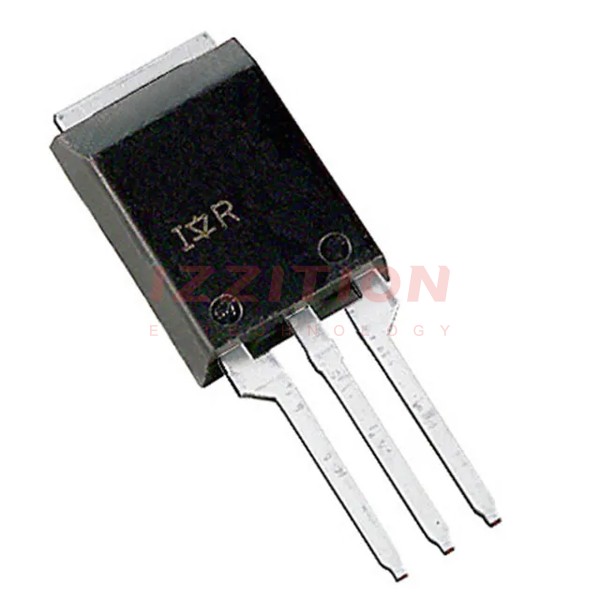

| Part Number | IRLBA3803P | IRLBA3803 |
|---|---|---|
| Manufacturer | Infineon Technologies | Vishay Siliconix |
| Product Status | Obsolete | Discontinued at Digi-Key |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 179A (Tc) | 179A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 71A, 10V | 5mOhm @ 71A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 140 nC @ 4.5 V | 140 nC @ 4.5 V |
| Vgs (Max) | - | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 5000 pF @ 25 V | 5000 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 270W (Tc) | 270W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | SUPER-220™ (TO-273AA) | SUPER-220™ (TO-273AA) |
| Package / Case | TO-273AA | Super-220™ |
