Infineon Technologies-IRLBA1304PPBF - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	185A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	4mOhm @ 110A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	140 nC @ 4.5 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	7660 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	300W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	SUPER-220™ (TO-273AA)
Package / Case:	TO-273AA

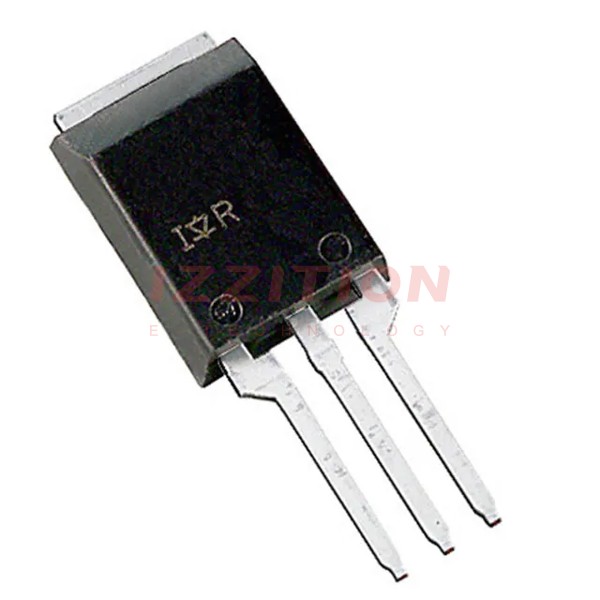

Infineon Technologies IRLBA1304PPBF
