Infineon Technologies-IRL6297SDTRPBF - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	15A
Rds On (Max) @ Id, Vgs:	4.9mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id:	1.1V @ 35µA
Gate Charge (Qg) (Max) @ Vgs:	54nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	2245pF @ 10V
Power - Max:	1.7W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DirectFET™ Isometric SA
Supplier Device Package:	DIRECTFET™ SA

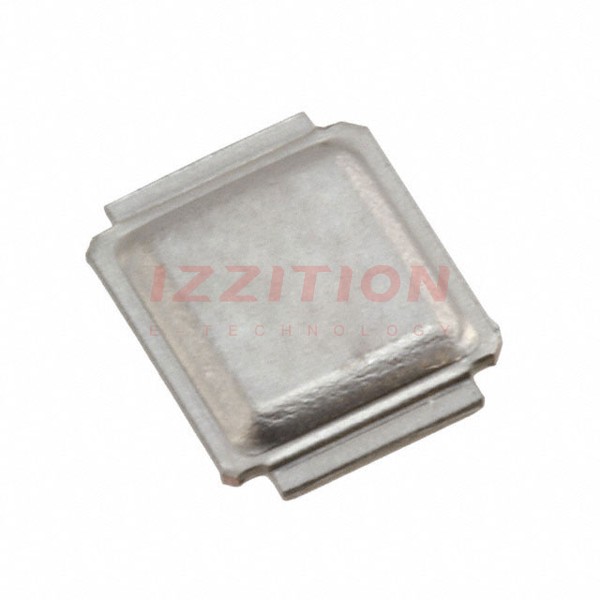

Infineon Technologies IRL6297SDTRPBF
