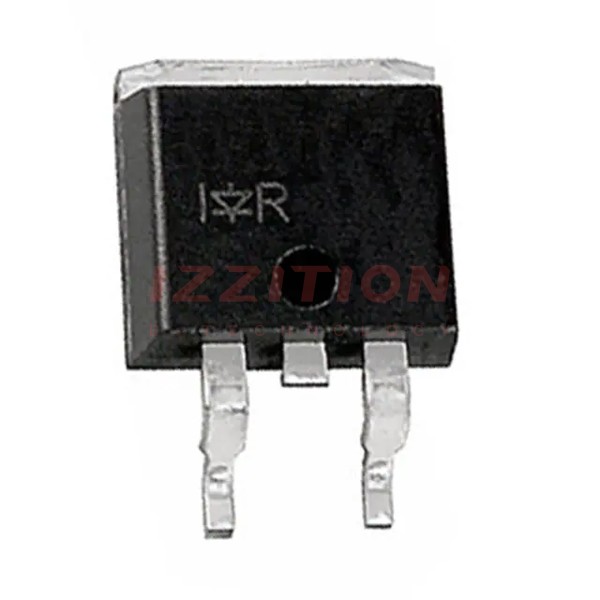

| Part Number | IRL3202S | IRL3502S | IRL3302S | IRL3402S | IRL3102S | IRL3202L |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Vishay Siliconix |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Discontinued at Digi-Key |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 48A (Tc) | 110A (Tc) | 39A (Tc) | 85A (Tc) | 61A (Tc) | 48A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 7V | 4.5V, 7V | 4.5V, 7V | 4.5V, 7V | 4.5V, 7V | 4.5V, 7V |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 29A, 7V | 7mOhm @ 64A, 7V | 20mOhm @ 23A, 7V | 8mOhm @ 51A, 7V | 13mOhm @ 37A, 7V | 16mOhm @ 29A, 7V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) | 700mV @ 250µA (Min) | 700mV @ 250µA (Min) | 700mV @ 250µA (Min) | 700mV @ 250µA (Min) | 700mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 4.5 V | 110 nC @ 4.5 V | 31 nC @ 4.5 V | 78 nC @ 4.5 V | 58 nC @ 4.5 V | 43 nC @ 4.5 V |
| Vgs (Max) | ±10V | ±10V | ±10V | ±10V | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2000 pF @ 15 V | 4700 pF @ 15 V | 1300 pF @ 15 V | 3300 pF @ 15 V | 2500 pF @ 15 V | 2000 pF @ 15 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 69W (Tc) | 140W (Tc) | 57W (Tc) | 110W (Tc) | 89W (Tc) | 69W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Supplier Device Package | D2PAK | D2PAK | D2PAK | D2PAK | D2PAK | TO-262-3 |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-262-3 Long Leads, I²Pak, TO-262AA |
