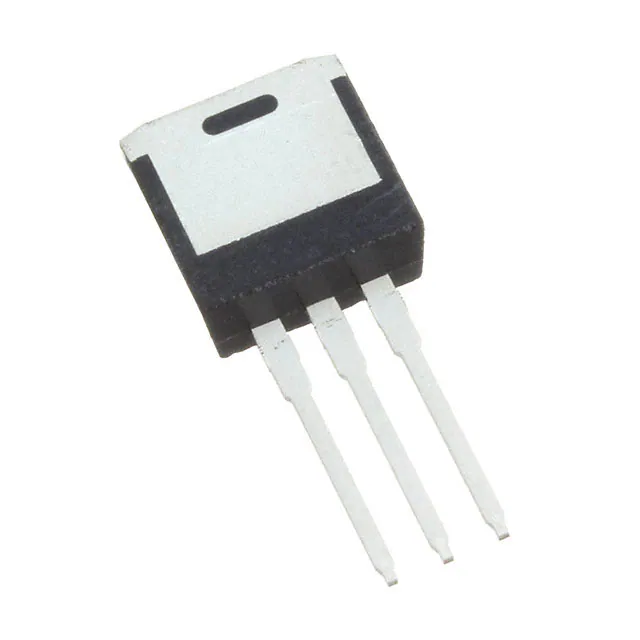

| Part Number | IRGSL15B60KDPBF | IRGS15B60KDPBF | IRGSL10B60KDPBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | NPT | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 31 A | 31 A | 22 A |
| Current - Collector Pulsed (Icm) | 62 A | 62 A | 44 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 15A | 2.2V @ 15V, 15A | 2.2V @ 15V, 10A |
| Power - Max | 208 W | 208 W | 156 W |
| Switching Energy | 220µJ (on), 340µJ (off) | 220µJ (on), 340µJ (off) | 140µJ (on), 250µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 56 nC | 56 nC | 38 nC |
| Td (on/off) @ 25°C | 34ns/184ns | 34ns/184ns | 30ns/230ns |
| Test Condition | 400V, 15A, 22Ohm, 15V | 400V, 15A, 22Ohm, 15V | 400V, 10A, 47Ohm, 15V |
| Reverse Recovery Time (trr) | 92 ns | 92 ns | 90 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | PG-TO262-3 | D2PAK | TO-262 |
