Infineon Technologies-IRGPS4067DPBF - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	240 A
Current - Collector Pulsed (Icm):	360 A
Vce(on) (Max) @ Vge, Ic:	2.05V @ 15V, 120A
Power - Max:	750 W
Switching Energy:	5.75mJ (on), 3.43mJ (off)
Input Type:	Standard
Gate Charge:	240 nC
Td (on/off) @ 25°C:	80ns/190ns
Test Condition:	400V, 120A, 4.7Ohm, 15V
Reverse Recovery Time (trr):	130 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-274AA
Supplier Device Package:	SUPER-247™ (TO-274AA)

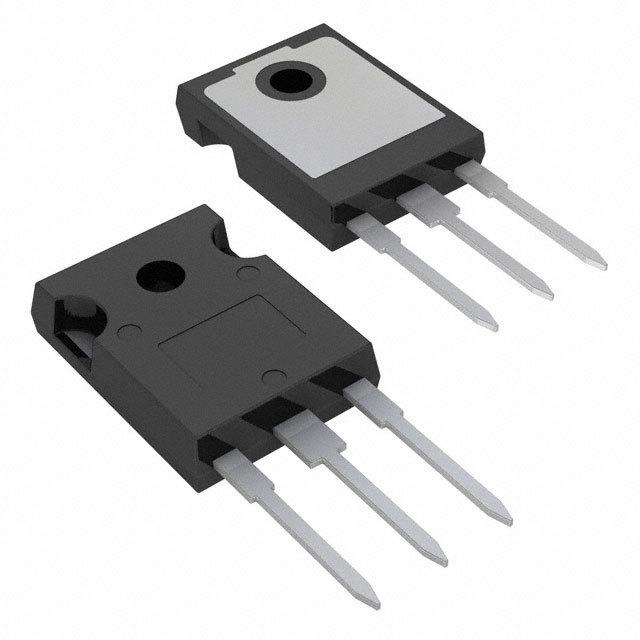

Infineon Technologies IRGPS4067DPBF
