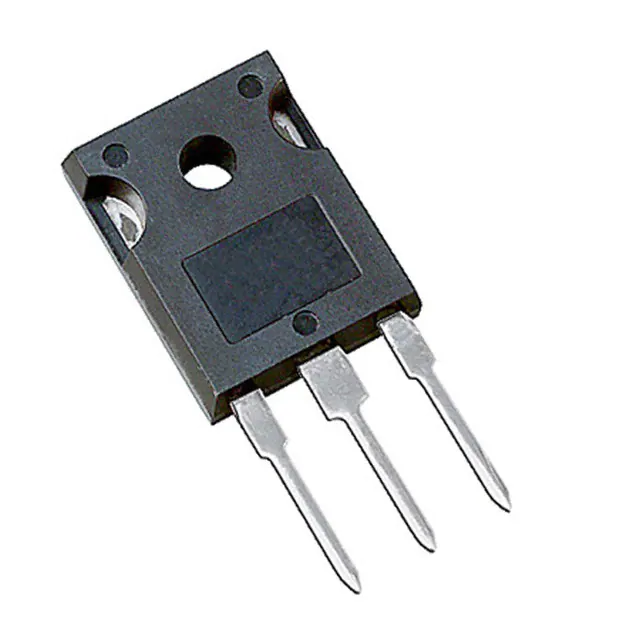

| Part Number | IRG8P40N120KDPBF | IRG8P50N120KDPBF | IRG8P60N120KDPBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 60 A | 80 A | 100 A |
| Current - Collector Pulsed (Icm) | 75 A | 105 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 25A | 2V @ 15V, 35A | 2V @ 15V, 40A |
| Power - Max | 305 W | 350 W | 420 W |
| Switching Energy | 1.6mJ (on), 1.8mJ (off) | 2.3mJ (on), 1.9mJ (off) | 2.8mJ (on), 2.3mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 240 nC | 315 nC | 345 nC |
| Td (on/off) @ 25°C | 40ns/245ns | 35ns/190ns | 40ns/240ns |
| Test Condition | 600V, 25A, 10Ohm, 15V | 600V, 35A, 5Ohm, 15V | 600V, 40A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 80 ns | 170 ns | 210 ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AC | TO-247AC | TO-247AC |
