Infineon Technologies-IRG7PSH73K10PBF - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	220 A
Current - Collector Pulsed (Icm):	225 A
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 75A
Power - Max:	1150 W
Switching Energy:	7.7mJ (on), 4.6mJ (off)
Input Type:	Standard
Gate Charge:	360 nC
Td (on/off) @ 25°C:	63ns/267ns
Test Condition:	600V, 75A, 4.7Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-274AA
Supplier Device Package:	SUPER-247™ (TO-274AA)

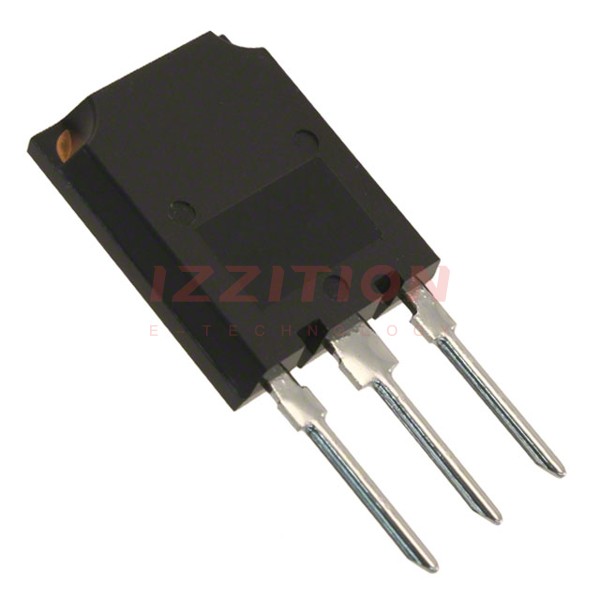

Infineon Technologies IRG7PSH73K10PBF
