Infineon Technologies-IRG7PSH50UDPBF - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	116 A
Current - Collector Pulsed (Icm):	150 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 50A
Power - Max:	462 W
Switching Energy:	3.6mJ (on), 2.2mJ (off)
Input Type:	Standard
Gate Charge:	440 nC
Td (on/off) @ 25°C:	35ns/430ns
Test Condition:	600V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr):	190 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	SUPER-247™ (TO-274AA)

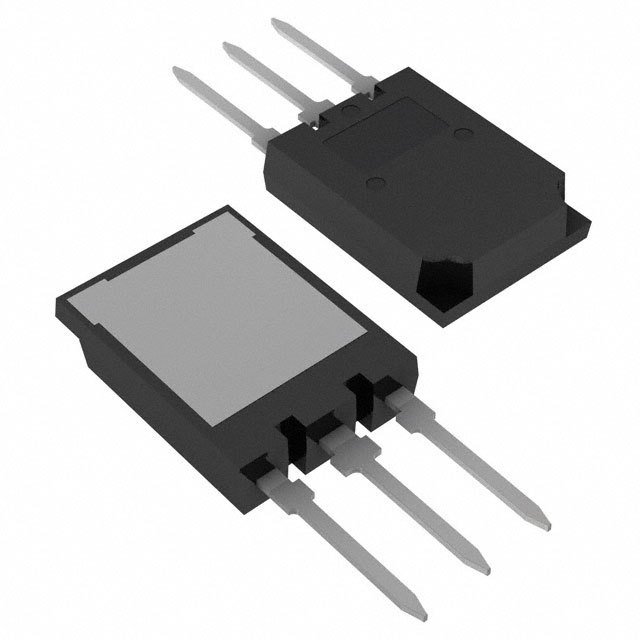

Infineon Technologies IRG7PSH50UDPBF
