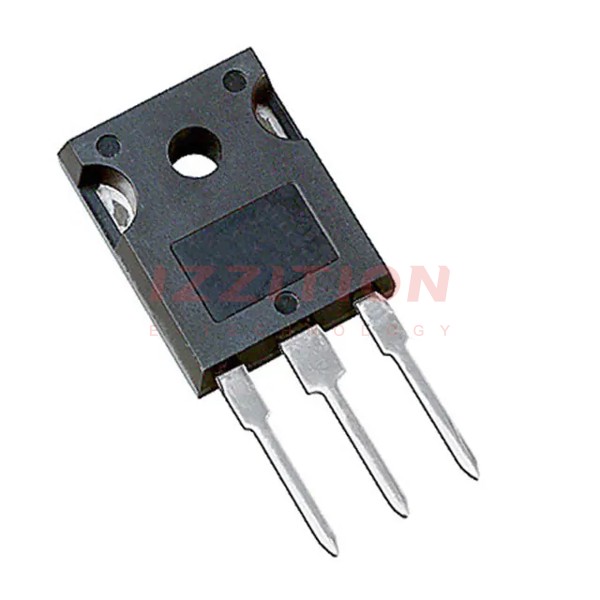

| Part Number | IRG7PK35UD1PBF | IRG7PH35UD1PBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| IGBT Type | - | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1400 V | 1200 V |
| Current - Collector (Ic) (Max) | 40 A | 50 A |
| Current - Collector Pulsed (Icm) | 200 A | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 20A | 2.2V @ 15V, 20A |
| Power - Max | 167 W | 179 W |
| Switching Energy | 650µJ (off) | 620µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 98 nC | 85 nC |
| Td (on/off) @ 25°C | -/150ns | -/160ns |
| Test Condition | 600V, 20A, 10Ohm, 15V | 600V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AC | TO-247AC |
