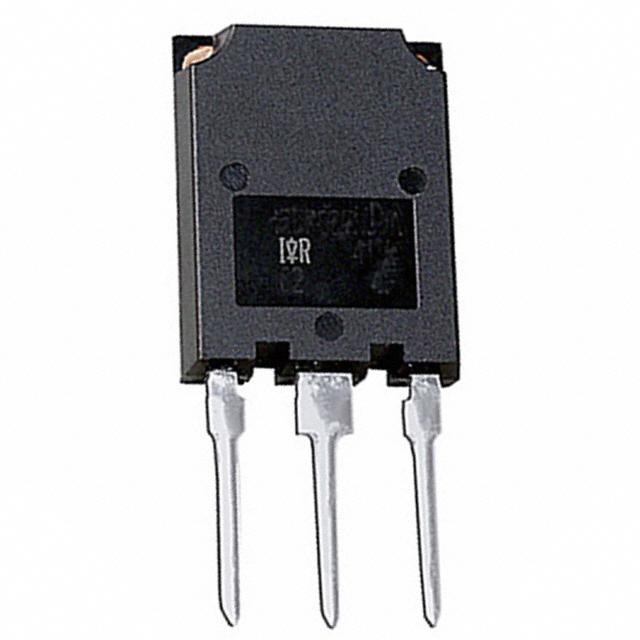

| Part Number | IRG4PSH71KPBF | IRG4PSH71UPBF | IRG4PSC71KPBF | IRG4PSH71KDPBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 600 V | 1200 V |
| Current - Collector (Ic) (Max) | 78 A | 99 A | 85 A | 78 A |
| Current - Collector Pulsed (Icm) | 156 A | 200 A | 200 A | 156 A |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 42A | 2.7V @ 15V, 70A | 2.3V @ 15V, 60A | 3.9V @ 15V, 42A |
| Power - Max | 350 W | 350 W | 350 W | 350 W |
| Switching Energy | 2.35mJ (on), 3.14mJ (off) | 4.77mJ (on), 9.54mJ (off) | 790µJ (on), 1.98mJ (off) | 5.68mJ (on), 3.23mJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 410 nC | 370 nC | 340 nC | 410 nC |
| Td (on/off) @ 25°C | 45ns/220ns | 51ns/280ns | 34ns/54ns | 67ns/230ns |
| Test Condition | 960V, 42A, 5Ohm, 15V | 960V, 70A, 5Ohm, 15V | 480V, 60A, 5Ohm, 15V | 800V, 42A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | 107 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-274AA | TO-274AA | TO-274AA | TO-274AA |
| Supplier Device Package | SUPER-247™ (TO-274AA) | SUPER-247™ (TO-274AA) | SUPER-247™ (TO-274AA) | SUPER-247™ (TO-274AA) |
