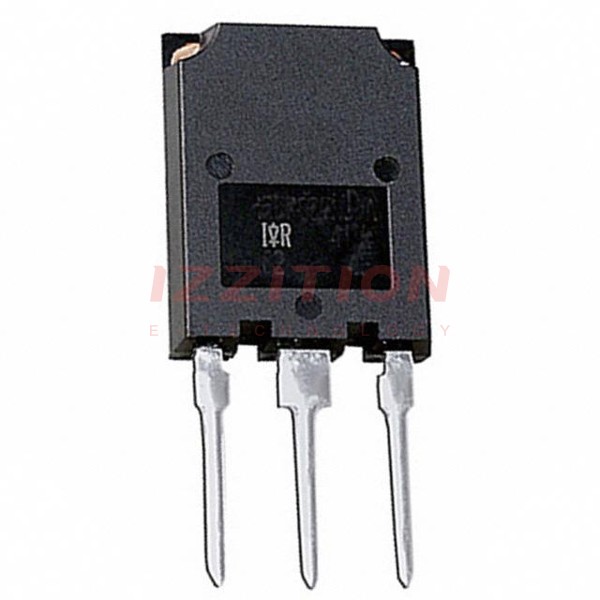

| Part Number | IRG4PSH71KDPBF | IRG4PSH71KPBF | IRG4PSH71UDPBF | IRG4PSC71KDPBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 600 V |
| Current - Collector (Ic) (Max) | 78 A | 78 A | 99 A | 85 A |
| Current - Collector Pulsed (Icm) | 156 A | 156 A | 200 A | 200 A |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 42A | 3.9V @ 15V, 42A | 2.7V @ 15V, 70A | 2.3V @ 15V, 60A |
| Power - Max | 350 W | 350 W | 350 W | 350 W |
| Switching Energy | 5.68mJ (on), 3.23mJ (off) | 2.35mJ (on), 3.14mJ (off) | 8.8mJ (on), 9.4mJ (off) | 3.95mJ (on), 2.33mJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 410 nC | 410 nC | 380 nC | 340 nC |
| Td (on/off) @ 25°C | 67ns/230ns | 45ns/220ns | 46ns/250ns | 82ns/282ns |
| Test Condition | 800V, 42A, 5Ohm, 15V | 960V, 42A, 5Ohm, 15V | 960V, 70A, 5Ohm, 15V | 480V, 60A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 107 ns | - | 110 ns | 82 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-274AA | TO-274AA | TO-274AA | TO-274AA |
| Supplier Device Package | SUPER-247™ (TO-274AA) | SUPER-247™ (TO-274AA) | SUPER-247™ (TO-274AA) | SUPER-247™ (TO-274AA) |
