Please send RFQ , we will respond immediately.

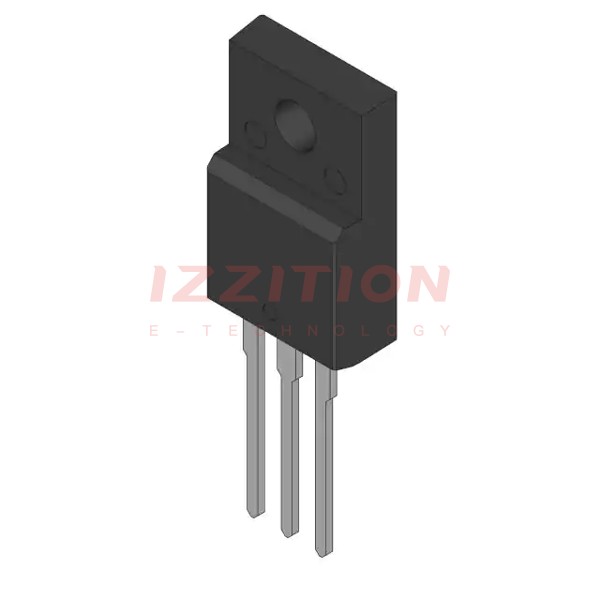

| Part Number | IRG4IBC30KDPBF-INF | IRG4IBC30UDPBF-INF | IRG4BC30KDPBF-INF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | - | - |
| Current - Collector (Ic) (Max) | 17 A | - | - |
| Current - Collector Pulsed (Icm) | 34 A | - | - |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 16A | - | - |
| Power - Max | 45 W | - | - |
| Switching Energy | 600µJ (on), 580µJ (off) | - | - |
| Input Type | Standard | - | - |
| Gate Charge | 100 nC | - | - |
| Td (on/off) @ 25°C | 60ns/160ns | - | - |
| Test Condition | 480V, 16A, 23Ohm, 15V | - | - |
| Reverse Recovery Time (trr) | 42 ns | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | - | - |
| Mounting Type | Through Hole | - | - |
| Package / Case | TO-220-3 Full Pack | - | - |
| Supplier Device Package | TO220 Full Pack | - | - |
