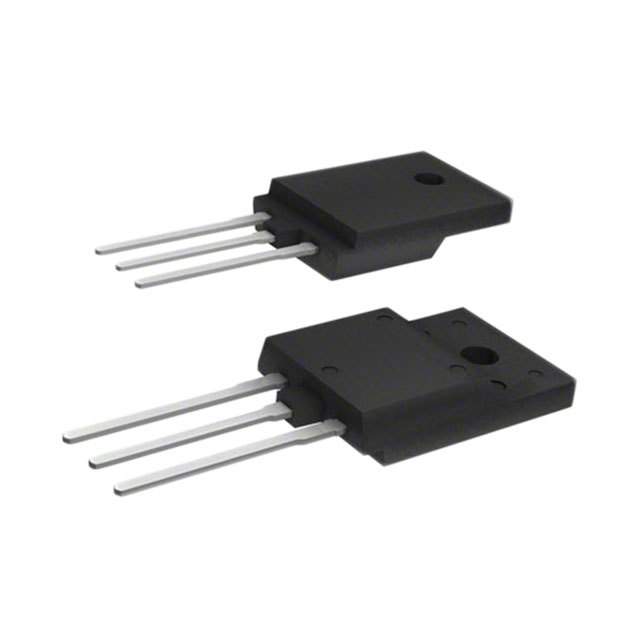

| Part Number | IRG4IBC20KD | IRG4IBC30KD | IRG4BC20KD | IRG4IBC20FD |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 11.5 A | 17 A | 16 A | 14.3 A |
| Current - Collector Pulsed (Icm) | 23 A | 34 A | 32 A | 64 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 9A | 2.7V @ 15V, 16A | 2.8V @ 15V, 9A | 2V @ 15V, 9A |
| Power - Max | 34 W | 45 W | 60 W | 34 W |
| Switching Energy | 340µJ (on), 300µJ (off) | 600µJ (on), 580µJ (off) | 340µJ (on), 300µJ (off) | 250µJ (on), 640µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 34 nC | 67 nC | 34 nC | 27 nC |
| Td (on/off) @ 25°C | 54ns/180ns | 60ns/160ns | 54ns/180ns | 43ns/240ns |
| Test Condition | 480V, 9A, 50Ohm, 15V | 480V, 16A, 23Ohm, 15V | 480V, 9A, 50Ohm, 15V | 480V, 9A, 50Ohm, 15V |
| Reverse Recovery Time (trr) | 37 ns | 42 ns | 37 ns | 37 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 | TO-220-3 Full Pack |
| Supplier Device Package | PG-TO220-FP | PG-TO220-FP | TO-220AB | PG-TO220-FP |
