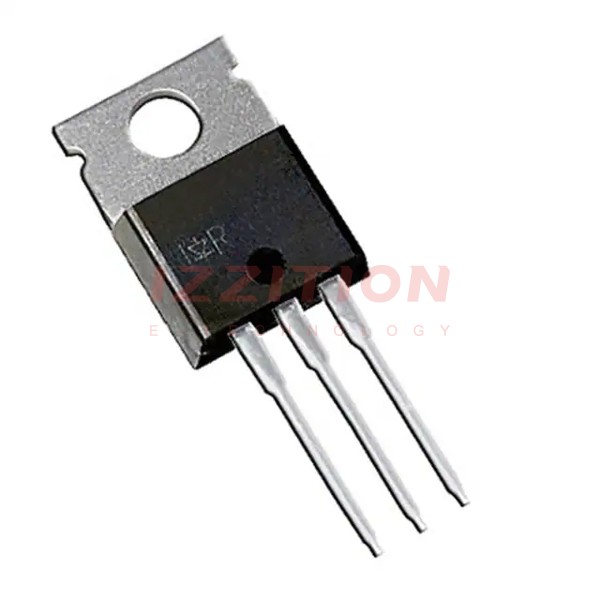

| Part Number | IRG4BC30U | IRG4BC40U | IRG4BC30W | IRG4PC30U | IRG4BC20U | IRG4BC30F | IRG4BC30K | IRG4BC30S |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 23 A | 40 A | 23 A | 23 A | 13 A | 31 A | 28 A | 34 A |
| Current - Collector Pulsed (Icm) | 92 A | 160 A | 92 A | 92 A | 52 A | 120 A | 58 A | 68 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 12A | 2.1V @ 15V, 20A | 2.7V @ 15V, 12A | 2.1V @ 15V, 12A | 2.1V @ 15V, 6.5A | 1.8V @ 15V, 17A | 2.7V @ 15V, 16A | 1.6V @ 15V, 18A |
| Power - Max | 100 W | 160 W | 100 W | 100 W | 60 W | 100 W | 100 W | 100 W |
| Switching Energy | 160µJ (on), 200µJ (off) | 320µJ (on), 350µJ (off) | 130µJ (on), 130µJ (off) | 160µJ (on), 200µJ (off) | 100µJ (on), 120µJ (off) | 230µJ (on), 1.18mJ (off) | 360µJ (on), 510µJ (off) | 260µJ (on), 3.45mJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 50 nC | 100 nC | 51 nC | 50 nC | 27 nC | 51 nC | 67 nC | 50 nC |
| Td (on/off) @ 25°C | 17ns/78ns | 34ns/110ns | 25ns/99ns | 17ns/78ns | 21ns/86ns | 21ns/200ns | 26ns/130ns | 22ns/540ns |
| Test Condition | 480V, 12A, 23Ohm, 15V | 480V, 25A, 10Ohm, 15V | 480V, 12A, 23Ohm, 15V | 480V, 12A, 23Ohm, 15V | 480V, 6.5A, 50Ohm, 15V | 480V, 17A, 23Ohm, 15V | 480V, 16A, 23Ohm, 15V | 480V, 18A, 23Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-247-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220AB | TO-220AB | TO-220AB | TO-247AC | TO-220AB | TO-220AB | TO-220AB | TO-220AB |
