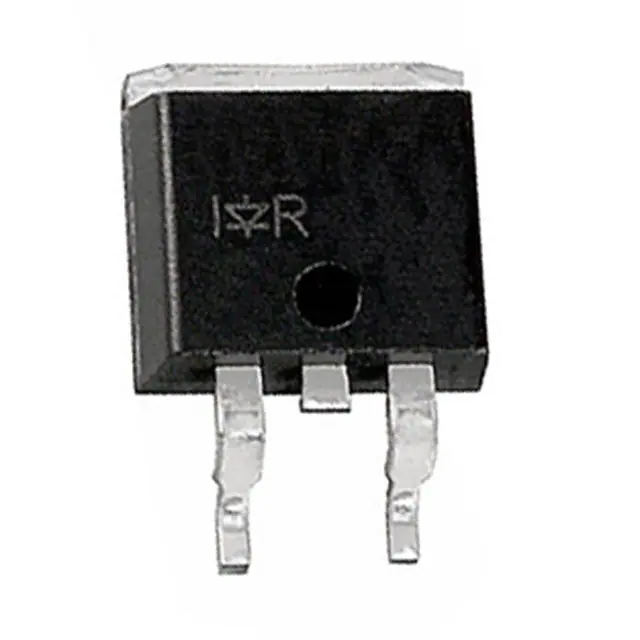

| Part Number | IRG4BC20KD-S | IRG4BC20SD-S | IRG4BC20UD-S | IRG4BC20FD-S | IRG4BC20K-S |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 16 A | 19 A | 13 A | 16 A | 16 A |
| Current - Collector Pulsed (Icm) | 32 A | 38 A | 52 A | 64 A | 32 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 9A | 1.6V @ 15V, 10A | 2.1V @ 15V, 6.5A | 2V @ 15V, 9A | 2.8V @ 15V, 9A |
| Power - Max | 60 W | 60 W | 60 W | 60 W | 60 W |
| Switching Energy | 340µJ (on), 300µJ (off) | 320µJ (on), 2.58mJ (off) | 160µJ (on), 130µJ (off) | 250µJ (on), 640µJ (off) | 150µJ (on), 250µJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 34 nC | 27 nC | 27 nC | 27 nC | 34 nC |
| Td (on/off) @ 25°C | 54ns/180ns | 62ns/690ns | 39ns/93ns | 43ns/240ns | 28ns/150ns |
| Test Condition | 480V, 9A, 50Ohm, 15V | 480V, 10A, 50Ohm, 15V | 480V, 6.5A, 50Ohm, 15V | 480V, 9A, 50Ohm, 15V | 480V, 9A, 50Ohm, 15V |
| Reverse Recovery Time (trr) | 37 ns | 37 ns | 37 ns | 37 ns | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK | D2PAK | D2PAK | D2PAK | D2PAK |
