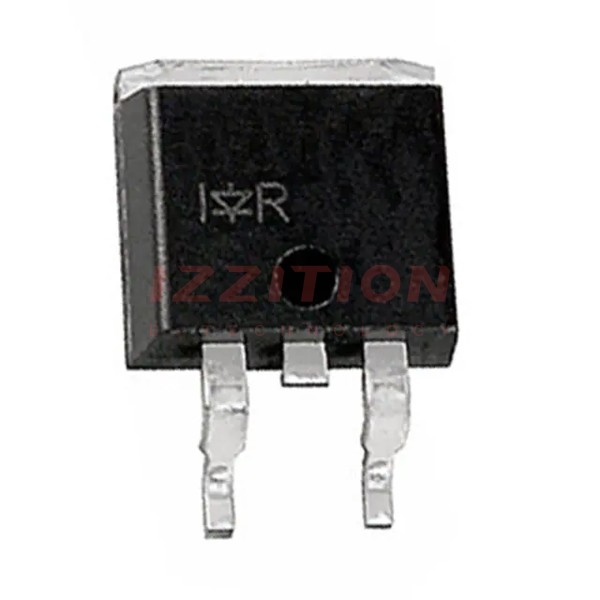

| Part Number | IRG4BC20K-S | IRG4BC20KD-S | IRG4BC30K-S | IRG4BH20K-S | IRG4BC20U-S | IRG4BC20W-S | IRG4BC20F-S |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 1200 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 16 A | 16 A | 28 A | 11 A | 16 A | 13 A | 16 A |
| Current - Collector Pulsed (Icm) | 32 A | 32 A | 58 A | 22 A | 52 A | 52 A | 64 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 9A | 2.8V @ 15V, 9A | 2.7V @ 15V, 16A | 4.3V @ 15V, 5A | 2V @ 15V, 9A | 2.6V @ 15V, 6.5A | 2V @ 15V, 9A |
| Power - Max | 60 W | 60 W | 100 W | 60 W | 60 W | 60 W | 60 W |
| Switching Energy | 150µJ (on), 250µJ (off) | 340µJ (on), 300µJ (off) | 360µJ (on), 510µJ (off) | 450µJ (on), 440µJ (off) | 100µJ (on), 120µJ (off) | 60µJ (on), 80µJ (off) | 70µJ (on), 600µJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 34 nC | 34 nC | 67 nC | 28 nC | 27 nC | 26 nC | 27 nC |
| Td (on/off) @ 25°C | 28ns/150ns | 54ns/180ns | 26ns/130ns | 23ns/93ns | 21ns/86ns | 22ns/110ns | 24ns/190ns |
| Test Condition | 480V, 9A, 50Ohm, 15V | 480V, 9A, 50Ohm, 15V | 480V, 16A, 23Ohm, 15V | 960V, 5A, 50Ohm, 15V | 480V, 6.5A, 50Ohm, 15V | 480V, 6.5A, 50Ohm, 15V | 480V, 9A, 50Ohm, 15V |
| Reverse Recovery Time (trr) | - | 37 ns | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 |
| Supplier Device Package | D2PAK | D2PAK | D2PAK | D2PAK | TO-220AB | D2PAK | TO-220AB |
