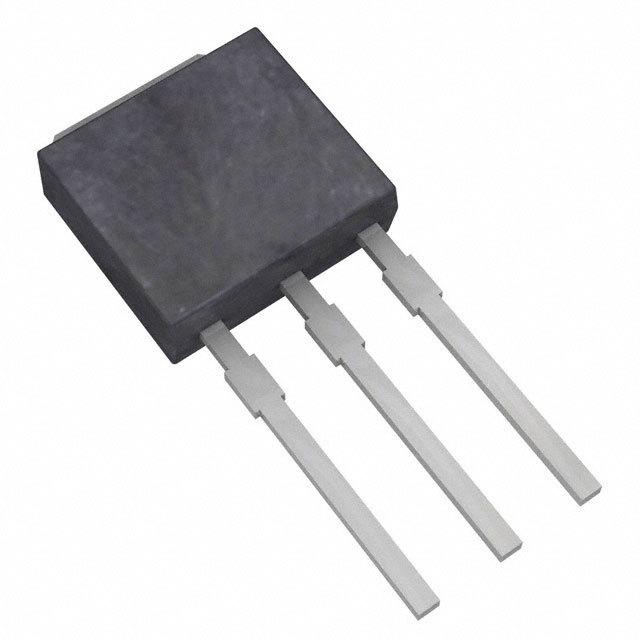

| Part Number | IRFU3504ZPBF | IRFU3704ZPBF | IRFU3504PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 20 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 42A (Tc) | 60A (Tc) | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 42A, 10V | 8.4mOhm @ 15A, 10V | 9.2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 2.55V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 10 V | 14 nC @ 4.5 V | 71 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1510 pF @ 25 V | 1190 pF @ 10 V | 2150 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 90W (Tc) | 48W (Tc) | 140W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | IPAK (TO-251AA) | IPAK (TO-251AA) | IPAK (TO-251AA) |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
