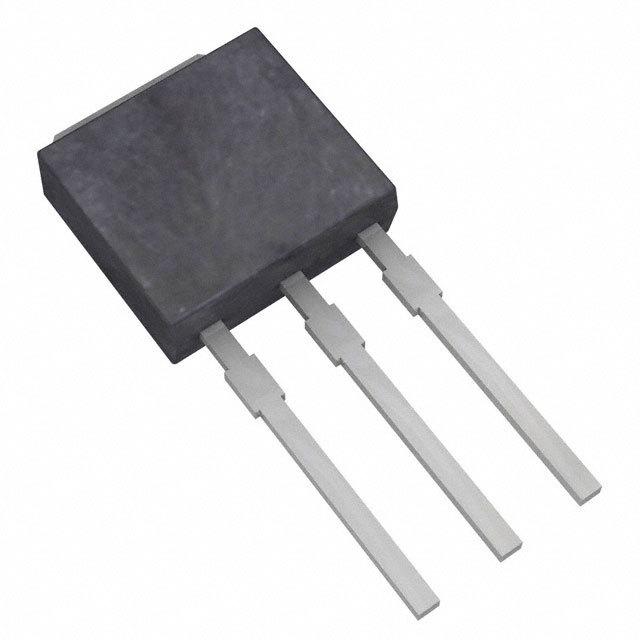

| Part Number | IRFU120ZPBF | IRFU1205PBF | IRFU120NPBF | IRFU120PBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Vishay Siliconix |
| Product Status | Obsolete | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 55 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 8.7A (Tc) | 44A (Tc) | 9.4A (Tc) | 7.7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 5.2A, 10V | 27mOhm @ 26A, 10V | 210mOhm @ 5.6A, 10V | 270mOhm @ 4.6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V | 65 nC @ 10 V | 25 nC @ 10 V | 16 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 310 pF @ 25 V | 1300 pF @ 25 V | 330 pF @ 25 V | 360 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 35W (Tc) | 107W (Tc) | 48W (Tc) | 2.5W (Ta), 42W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | IPAK (TO-251AA) | IPAK (TO-251AA) | IPAK (TO-251AA) | TO-251AA |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
