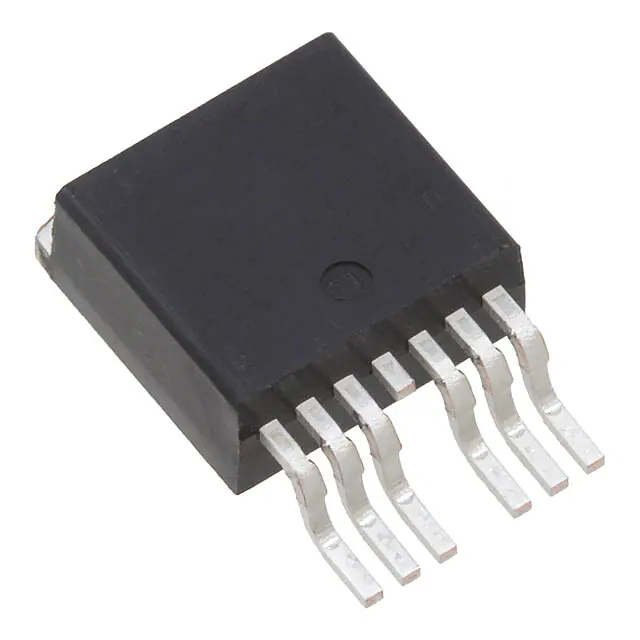

| Part Number | IRFS7534TRL7PP | IRFS7734TRL7PP | IRFS7434TRL7PP | IRFS7530TRL7PP |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Last Time Buy | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 75 V | 40 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | 197A (Tc) | 240A (Tc) | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.95mOhm @ 100A, 10V | 3.05mOhm @ 100A, 10V | 1mOhm @ 100A, 10V | 1.4mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.7V @ 250µA | 3.7V @ 150µA | 3.9V @ 250µA | 3.7V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 300 nC @ 10 V | 270 nC @ 10 V | 315 nC @ 10 V | 354 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9990 pF @ 25 V | 10130 pF @ 25 V | 10250 pF @ 25 V | 12960 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 290W (Tc) | 294W (Tc) | 245W (Tc) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK (7-Lead) | PG-TO263-7 | D2PAK-7 | PG-TO263-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) |
