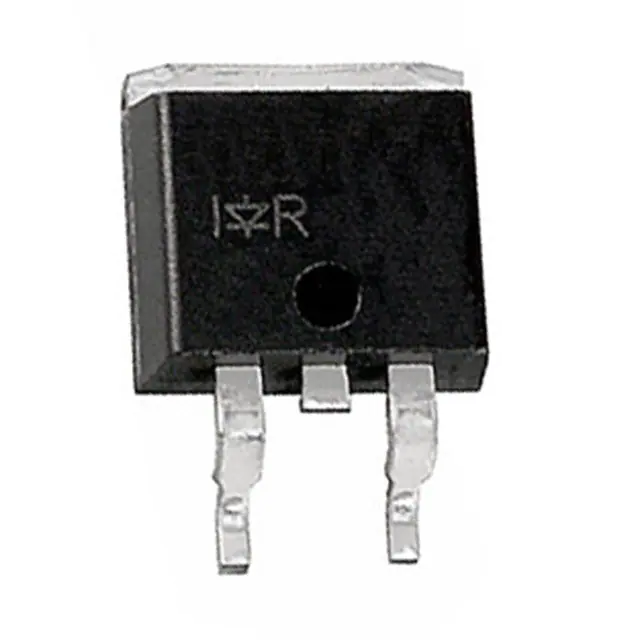

| Part Number | IRFS23N15D | IRFS33N15D |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) | 33A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 14A, 10V | 56mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA | 5.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 10 V | 90 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 25 V | 2020 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.8W (Ta), 136W (Tc) | 3.8W (Ta), 170W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
