Infineon Technologies-IRFR2607ZTRPBF - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	42A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	22mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:	4V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	51 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	1440 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-
Mounting Type:	Surface Mount

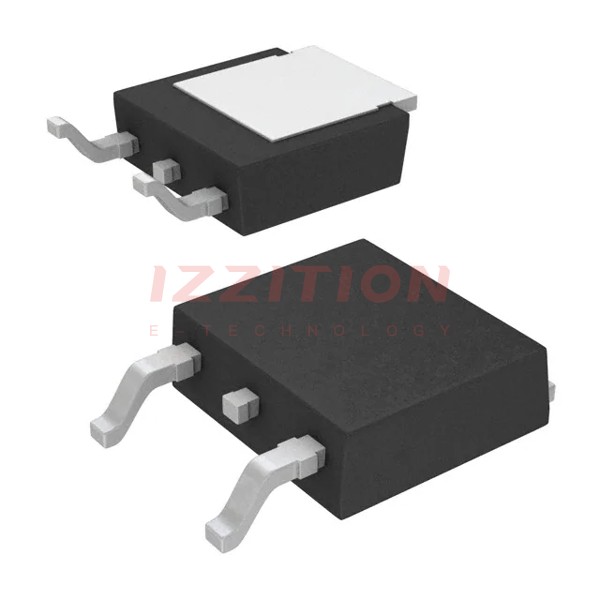

Supplier Device Package:	D-Pak
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63

Infineon Technologies IRFR2607ZTRPBF
