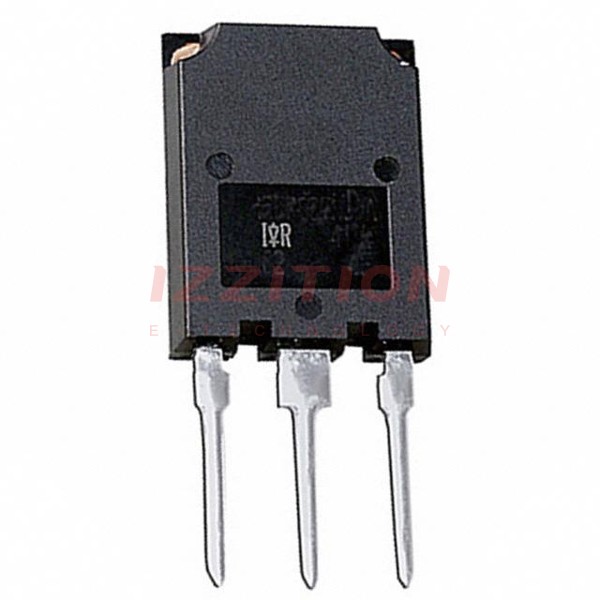

| Part Number | IRFPS3810PBF | IRFPS3815PBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 170A (Tc) | 105A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 100A, 10V | 15mOhm @ 63A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 390 nC @ 10 V | 390 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6790 pF @ 25 V | 6810 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 580W (Tc) | 441W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | SUPER-247™ (TO-274AA) | SUPER-247™ (TO-274AA) |
| Package / Case | TO-274AA | TO-274AA |
