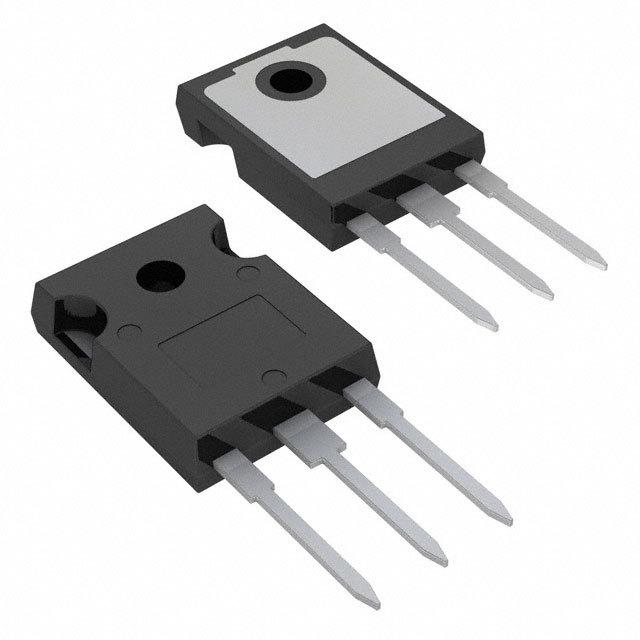

| Part Number | IRFP4310ZPBF | IRFP4410ZPBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | 97A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 75A, 10V | 9mOhm @ 58A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 150µA | 4V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 170 nC @ 10 V | 120 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6860 pF @ 50 V | 4820 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 280W (Tc) | 230W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247AC | TO-247AC |
| Package / Case | TO-247-3 | TO-247-3 |
