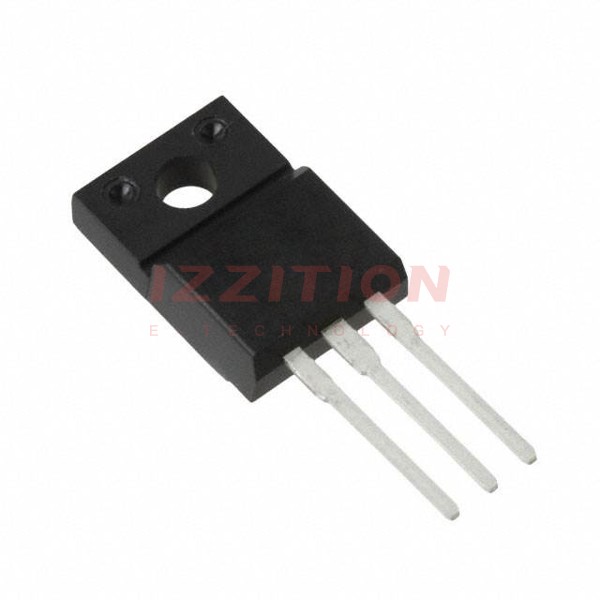

Infineon Technologies-IRFI4905 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	55 V
Current - Continuous Drain (Id) @ 25°C:	41A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	20mOhm @ 22A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	180 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3400 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	63W (Tc)
Operating Temperature:	-
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB Full-Pak
Package / Case:	TO-220-3 Full Pack

Infineon Technologies IRFI4905
