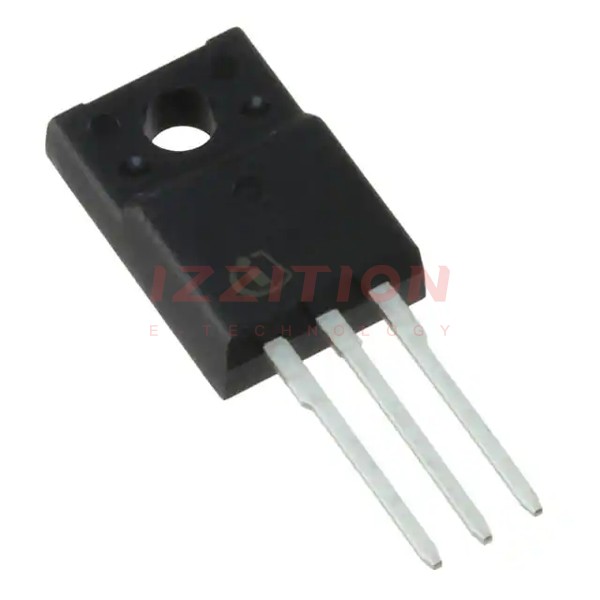

| Part Number | IRFI4229PBF | IRFI4227PBF | IRFI4228PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 200 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) | 26A (Tc) | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 46mOhm @ 11A, 10V | 25mOhm @ 17A, 10V | 16mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V | 110 nC @ 10 V | 110 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4480 pF @ 25 V | 4600 pF @ 25 V | 4560 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 46W (Tc) | 46W (Tc) | 46W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220AB | TO-220AB Full-Pak | TO-220AB Full-Pak |
| Package / Case | TO-220-3 | TO-220-3 Full Pack | TO-220-3 Full Pack |
