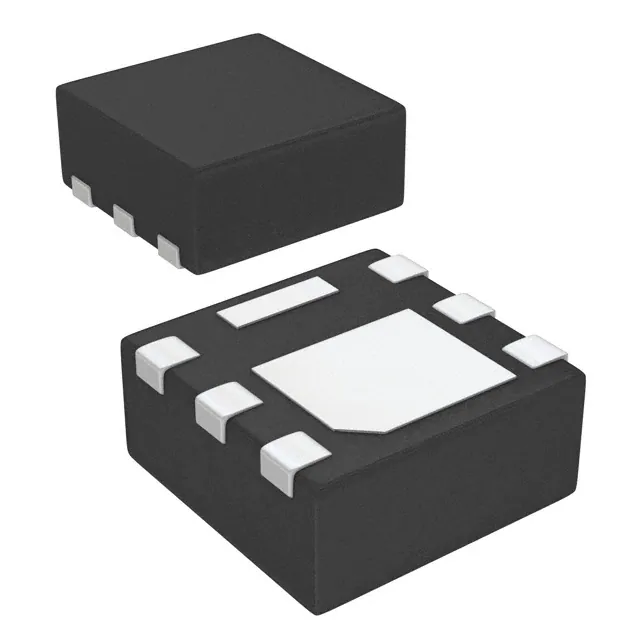

| Part Number | IRFHS9301TRPBF | IRFHS9301TR2PBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta), 13A (Tc) | 6A (Ta), 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 37mOhm @ 7.8A, 10V | 37mOhm @ 7.8A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 25µA | 2.4V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 13 nC @ 10 V |
| Vgs (Max) | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 580 pF @ 25 V | 580 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.1W (Ta) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) | 6-PQFN (2x2) |
| Package / Case | 6-PowerVDFN | 6-PowerVDFN |
