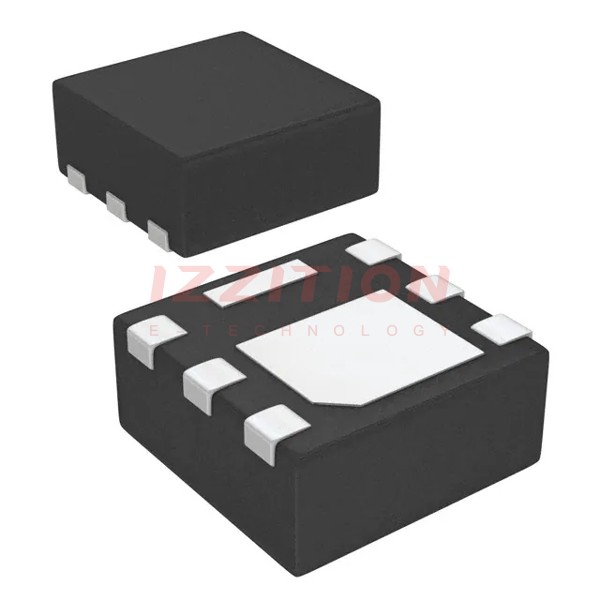

| Part Number | IRFHS8242TRPBF | IRFHS8342TRPBF | IRFHS8242TR2PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 30 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 9.9A (Ta), 21A (Tc) | 8.8A (Ta), 19A (Tc) | 9.9A (Ta), 21A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 8.5A, 10V | 16mOhm @ 8.5A, 10V | 13mOhm @ 8.5A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | 2.35V @ 25µA | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.4 nC @ 10 V | 8.7 nC @ 10 V | 10.4 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 653 pF @ 10 V | 600 pF @ 25 V | 653 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.1W (Ta) | 2.1W (Ta) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) | PG-TSDSON-6 | 6-PQFN (2x2) |
| Package / Case | 6-PowerVDFN | 6-PowerVDFN | 6-PowerVDFN |
