Please send RFQ , we will respond immediately.

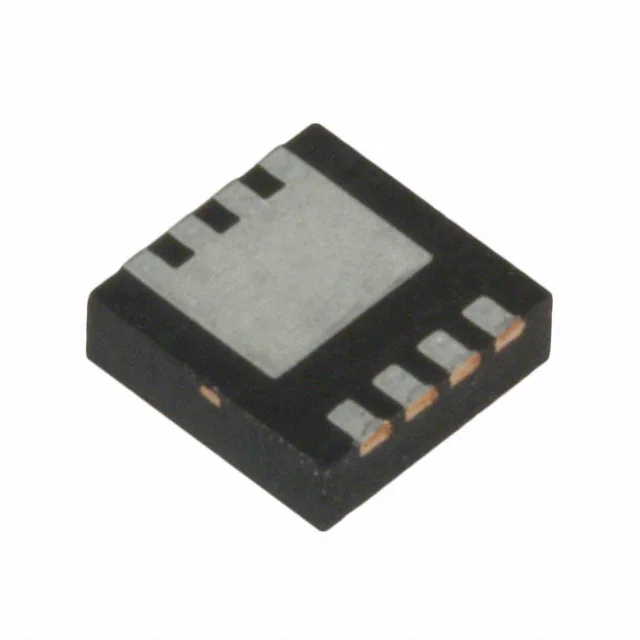

| Part Number | IRFHM830TR2PBF | IRFHM830TRPBF | IRFHM831TR2PBF | IRFHM830DTR2PBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 40A (Tc) | 21A (Ta), 40A (Tc) | 14A (Ta), 40A (Tc) | 20A (Ta), 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | - | - |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 20A, 10V | 3.8mOhm @ 20A, 10V | 7.8mOhm @ 12A, 10V | 4.3mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 50µA | 2.35V @ 50µA | 2.35V @ 25µA | 2.35V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V | 31 nC @ 10 V | 16 nC @ 10 V | 27 nC @ 10 V |
| Vgs (Max) | - | ±20V | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2155 pF @ 25 V | 2155 pF @ 25 V | 1050 pF @ 25 V | 1797 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | 2.7W (Ta), 37W (Tc) | - | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PQFN (3x3) | 8-PQFN-Dual (3.3x3.3) | PQFN (3x3) | PQFN (3x3) |
| Package / Case | 8-VQFN Exposed Pad | 8-PowerVDFN | 8-PowerTDFN | 8-VQFN Exposed Pad |
