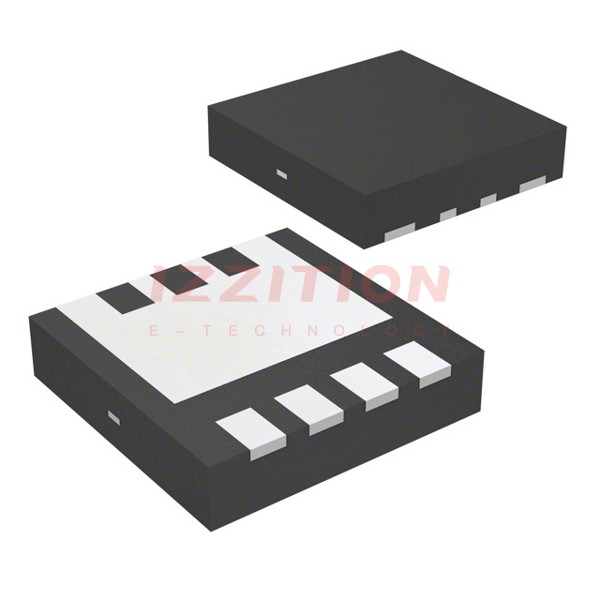

| Part Number | IRFHM4234TRPBF | IRFHM4231TRPBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 30A, 10V | 3.4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 25µA | 2.1V @ 35µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V | 20 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1011 pF @ 13 V | 1270 pF @ 13 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 28W (Tc) | 2.7W (Ta), 29W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | - | 8-PQFN (3x3) |
| Package / Case | 8-TQFN Exposed Pad | 8-PowerTDFN |
