Please send RFQ , we will respond immediately.

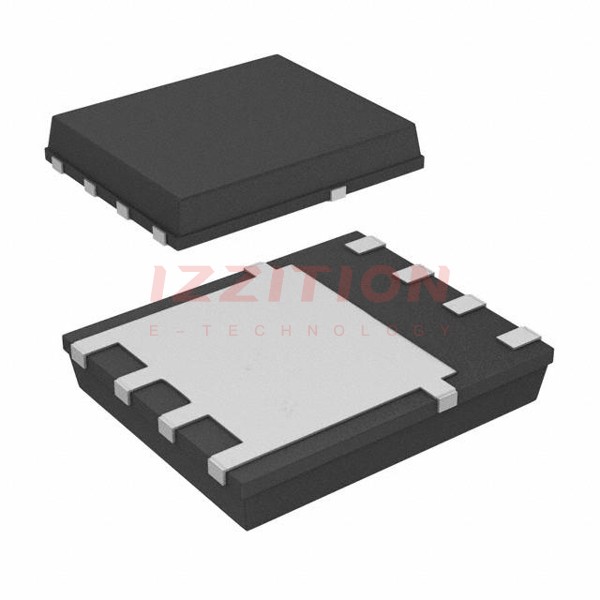

| Part Number | IRFH8311TRPBF | IRFH8318TRPBF | IRFH8316TRPBF | IRFH8321TRPBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 169A (Tc) | 27A (Ta), 120A (Tc) | 27A (Ta), 50A (Tc) | 21A (Ta), 83A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 20A, 10V | 3.1mOhm @ 20A, 10V | 2.95mOhm @ 20A, 10V | 4.9mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 100µA | 2.35V @ 50µA | 2.2V @ 50µA | 2V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 66 nC @ 10 V | 41 nC @ 10 V | 59 nC @ 10 V | 59 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4960 pF @ 10 V | 3180 pF @ 10 V | 3610 pF @ 10 V | 2600 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.6W (Ta), 96W (Tc) | 3.6W (Ta), 59W (Tc) | 3.6W (Ta), 59W (Tc) | 3.4W (Ta), 54W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PQFN (5x6) | PQFN (5x6) | 8-PQFN (5x6) | PQFN (5x6) |
| Package / Case | 8-TQFN Exposed Pad | 8-PowerTDFN | 8-PowerTDFN | 8-TQFN Exposed Pad |
