Please send RFQ , we will respond immediately.

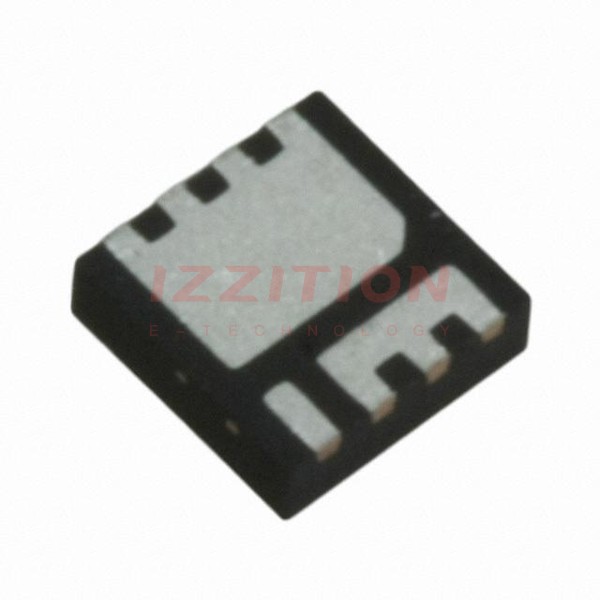

| Part Number | IRFH7921TR2PBF | IRFH7921TRPBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 34A (Tc) | 15A (Ta), 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 15A, 10V | 8.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V | 14 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1210 pF @ 15 V | 1210 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.1W (Ta) | 3.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PQFN (5x6) Single Die | PQFN (5x6) Single Die |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
