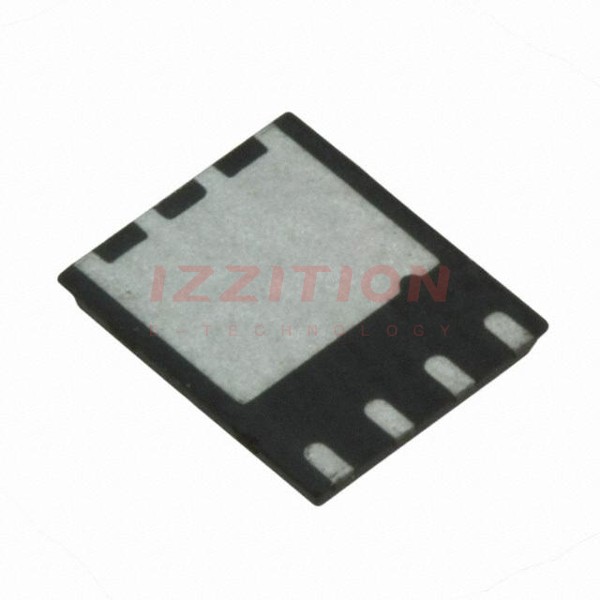

| Part Number | IRFH7914TR2PBF | IRFH7914TRPBF | IRFH7934TR2PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 35A (Tc) | 15A (Ta), 35A (Tc) | 24A (Ta), 76A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 8.7mOhm @ 14A, 10V | 8.7mOhm @ 14A, 10V | 3.5mOhm @ 24A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | 2.35V @ 25µA | 2.35V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V | 12 nC @ 4.5 V | 30 nC @ 4.5 V |
| Vgs (Max) | - | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1160 pF @ 15 V | 1160 pF @ 15 V | 3100 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 3.1W (Ta) | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
