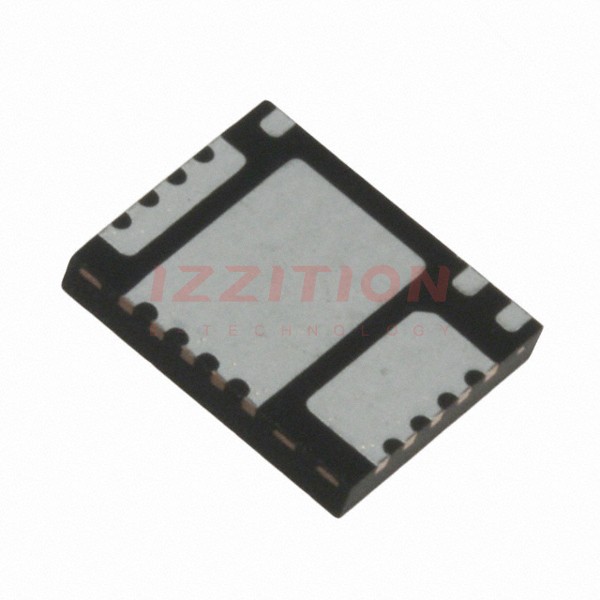

| Part Number | IRFH7911TRPBF | IRFH7911TR2PBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 13A, 28A | 13A, 28A |
| Rds On (Max) @ Id, Vgs | 8.6mOhm @ 12A, 10V | 8.6mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 4.5V | 12nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1060pF @ 15V | 1060pF @ 15V |
| Power - Max | 2.4W, 3.4W | 2.4W, 3.4W |
| Operating Temperature | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 18-PowerVQFN | 18-PowerVQFN |
| Supplier Device Package | PQFN (5x6) | PQFN (5x6) |
