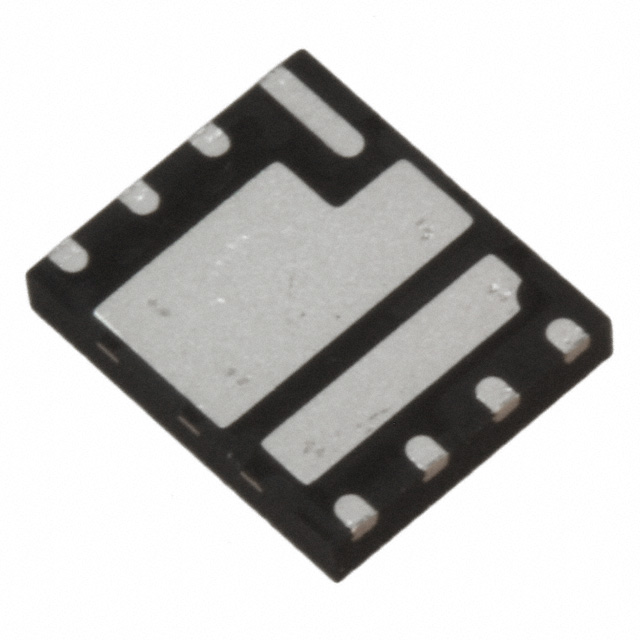

| Part Number | IRFH7885TRPBF | IRFH7085TRPBF | IRFH7185TRPBF | IRFH7882TRPBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 60 V | 100 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta) | 100A (Tc) | 19A (Ta) | 26A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 6V, 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 50A, 10V | 3.2mOhm @ 75A, 10V | 5.2mOhm @ 50A, 10V | 3.1mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 150µA | 3.7V @ 150µA | 3.6V @ 150µA | 3.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V | 165 nC @ 10 V | 54 nC @ 10 V | 74 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2311 pF @ 40 V | 6460 pF @ 25 V | 2320 pF @ 50 V | 3186 pF @ 40 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.6W (Ta), 156W (Tc) | 156W (Tc) | 3.6W (Ta), 160W (Tc) | 4W (Ta), 195W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-VQFN | 8-PowerVDFN | 8-PowerTDFN | 8-VQFN |
