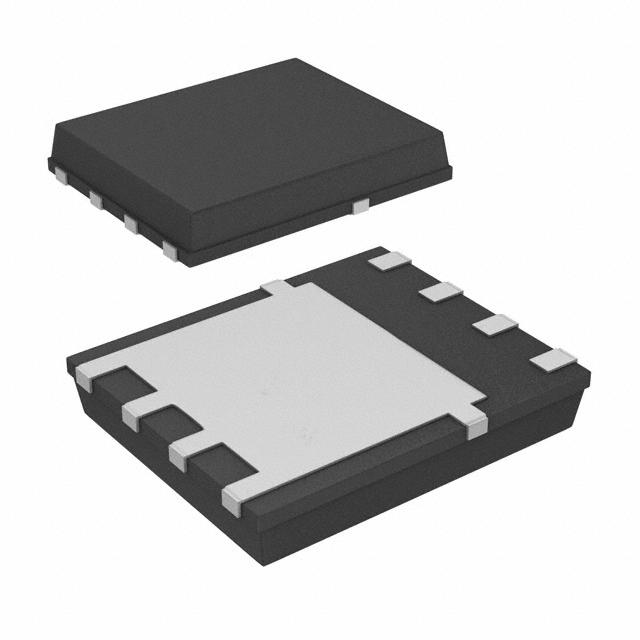

| Part Number | IRFH7110TRPBF | IRFH7190TRPBF | IRFH5110TRPBF | IRFH7110TR2PBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 58A (Tc) | 15A (Ta), 82A (Tc) | 11A (Ta), 63A (Tc) | 11A (Ta), 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | - |
| Rds On (Max) @ Id, Vgs | 13.5mOhm @ 35A, 10V | 7.5mOhm @ 49A, 10V | 12.4mOhm @ 37A, 10V | 13.5mOhm @ 35A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA | 3.6V @ 100µA | 4V @ 100µA | 4V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 87 nC @ 10 V | 39 nC @ 10 V | 72 nC @ 10 V | 87 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3240 pF @ 25 V | 1685 pF @ 50 V | 3152 pF @ 25 V | 3240 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.6W (Ta), 104W (Tc) | 3.6W (Ta), 104W (Tc) | 3.6W (Ta), 114W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-TQFN Exposed Pad | 8-PowerTDFN | 8-PowerVDFN | 8-TQFN Exposed Pad |
