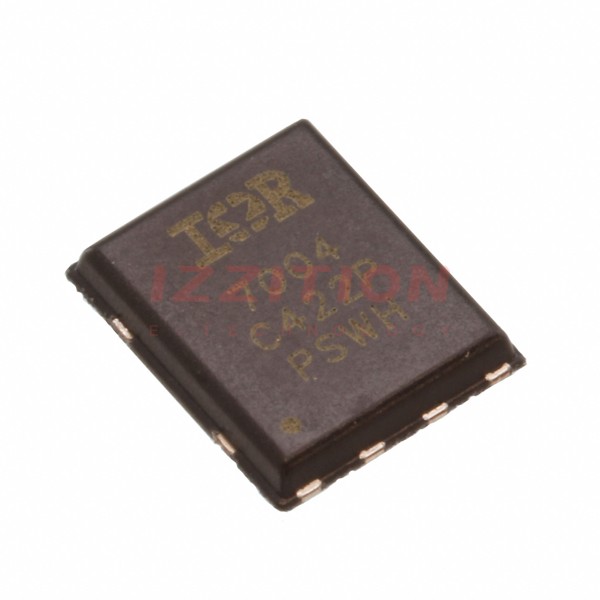

| Part Number | IRFH7004TRPBF | IRFH7084TRPBF | IRFH5004TRPBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 100A (Tc) | 28A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.4mOhm @ 100A, 10V | 1.25mOhm @ 100A, 10V | 2.6mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 150µA | 3.9V @ 150µA | 4V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 194 nC @ 10 V | 190 nC @ 10 V | 110 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6419 pF @ 25 V | 6560 pF @ 25 V | 4490 pF @ 20 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 156W (Tc) | 156W (Tc) | 3.6W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-VQFN Exposed Pad | 8-PowerTDFN | 8-PowerVDFN |
