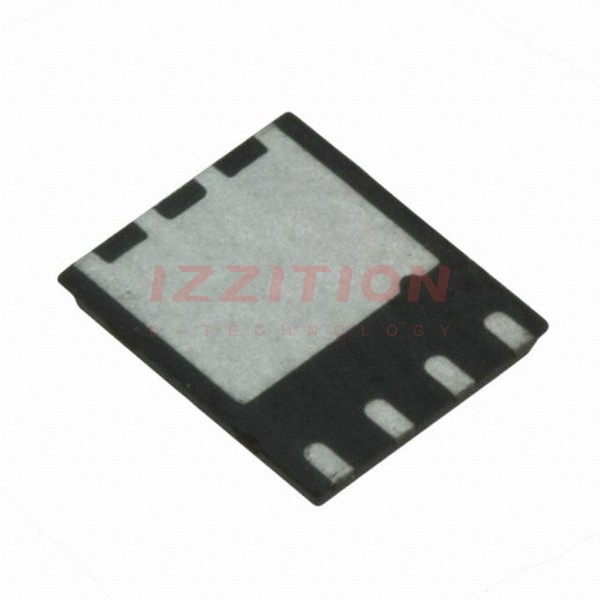

| Part Number | IRFH6200TRPBF | IRFH6200TR2PBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 49A (Ta), 100A (Tc) | 49A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 0.95mOhm @ 50A, 10V | 0.95mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 1.1V @ 150µA | 1.1V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 230 nC @ 4.5 V | 230 nC @ 4.5 V |
| Vgs (Max) | ±12V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 10890 pF @ 10 V | 10890 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.6W (Ta), 156W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
