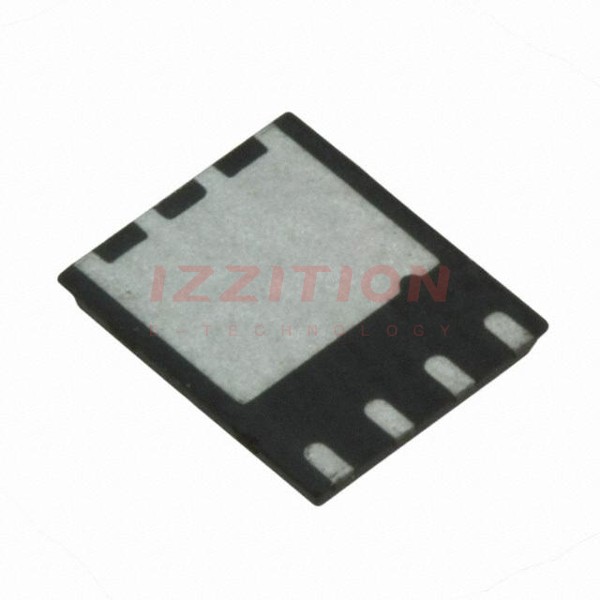

| Part Number | IRFH5255TRPBF | IRFH5215TRPBF | IRFH5250TRPBF | IRFH5255TR2PBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 150 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 51A (Tc) | 5A (Ta), 27A (Tc) | 45A (Ta), 100A (Tc) | 15A (Ta), 51A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 10V | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 15A, 10V | 58mOhm @ 16A, 10V | 1.15mOhm @ 50A, 10V | 6mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | 5V @ 100µA | 2.35V @ 150µA | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.5 nC @ 10 V | 32 nC @ 10 V | 110 nC @ 10 V | 14.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 988 pF @ 13 V | 1350 pF @ 50 V | 7174 pF @ 13 V | 988 pF @ 13 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.6W (Ta), 26W (Tc) | 3.6W (Ta), 104W (Tc) | 3.6W (Ta), 160W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN | 8-VQFN Exposed Pad | 8-PowerVDFN | 8-PowerVDFN |
