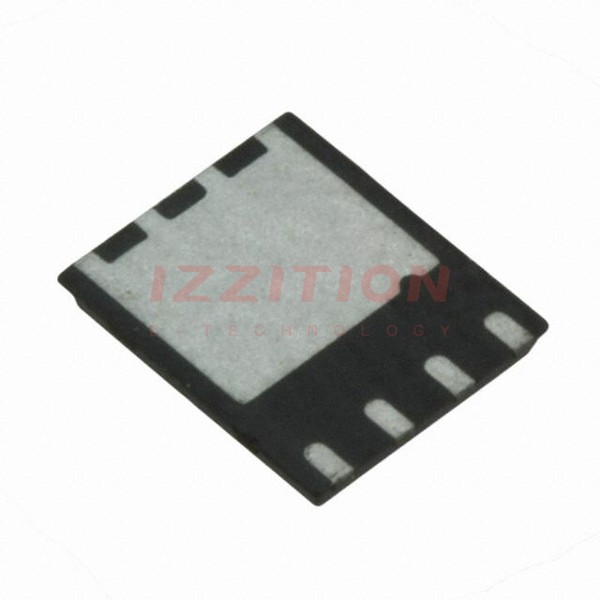

| Part Number | IRFH5110TR2PBF | IRFH5110TRPBF | IRFH5210TR2PBF | IRFH7110TR2PBF | IRFH5010TR2PBF |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 63A (Tc) | 11A (Ta), 63A (Tc) | 10A (Ta), 55A (Tc) | 11A (Ta), 58A (Tc) | 13A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | - | - | - |
| Rds On (Max) @ Id, Vgs | 12.4mOhm @ 37A, 10V | 12.4mOhm @ 37A, 10V | 14.9mOhm @ 33A, 10V | 13.5mOhm @ 35A, 10V | 9mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA | 4V @ 100µA | 4V @ 100µA | 4V @ 100µA | 4V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V | 72 nC @ 10 V | 59 nC @ 10 V | 87 nC @ 10 V | 98 nC @ 10 V |
| Vgs (Max) | - | ±20V | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3152 pF @ 25 V | 3152 pF @ 25 V | 2570 pF @ 25 V | 3240 pF @ 25 V | 4340 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | - | 3.6W (Ta), 114W (Tc) | - | - | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN | 8-TQFN Exposed Pad | 8-PowerVDFN |
