Please send RFQ , we will respond immediately.

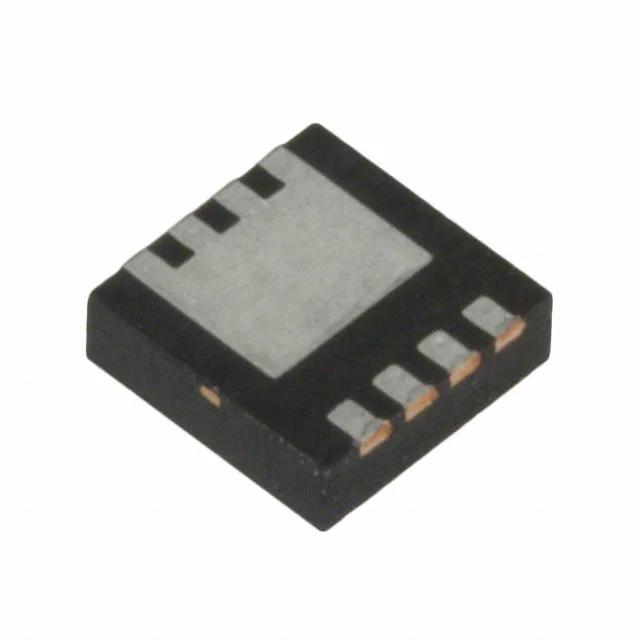

| Part Number | IRFH5104TR2PBF | IRFH5304TR2PBF | IRFH5106TR2PBF | IRFH5104TRPBF | IRFH5204TR2PBF | IRFH5004TR2PBF |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 30 V | 60 V | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 100A (Tc) | 22A (Ta), 79A (Tc) | 21A (Ta), 100A (Tc) | 24A (Ta), 100A (Tc) | 22A (Ta), 100A (Tc) | 28A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | - | 10V | - | - |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 50A, 10V | 4.5mOhm @ 47A, 10V | 5.6mOhm @ 50A, 10V | 3.5mOhm @ 50A, 10V | 4.3mOhm @ 50A, 10V | 2.6mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA | 2.35V @ 50µA | 4V @ 250µA | 4V @ 100µA | 4V @ 100µA | 4V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V | 41 nC @ 10 V | 75 nC @ 10 V | 80 nC @ 10 V | 65 nC @ 10 V | 110 nC @ 10 V |
| Vgs (Max) | ±20V | - | - | ±20V | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3120 pF @ 25 V | 2360 pF @ 10 V | 3090 pF @ 25 V | 3120 pF @ 25 V | 2460 pF @ 25 V | 4490 pF @ 20 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 3.6W (Ta), 114W (Tc) | - | - | 3.6W (Ta), 114W (Tc) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | - | - | -55°C ~ 150°C (TJ) | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | PQFN (5x6) | PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-VQFN Exposed Pad | 8-PowerVDFN | 8-PowerVDFN | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-PowerVDFN |
