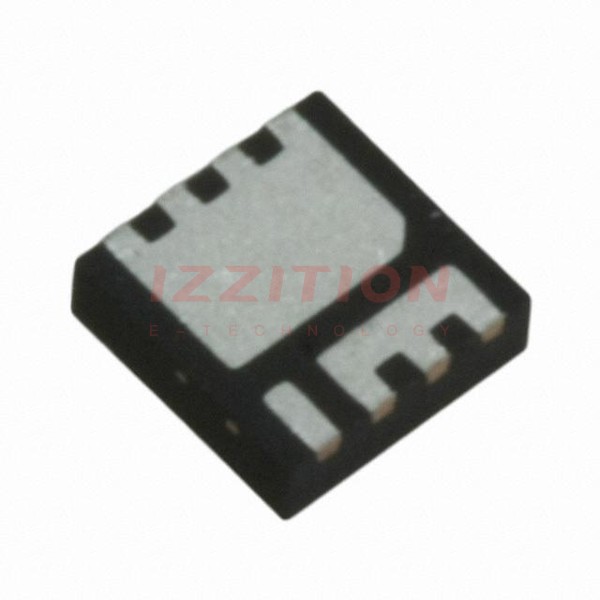

| Part Number | IRFH5053TRPBF | IRFH5053TR2PBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 9.3A (Ta), 46A (Tc) | 9.3A (Ta), 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 9.3A, 10V | 18mOhm @ 9.3A, 10V |
| Vgs(th) (Max) @ Id | 4.9V @ 100µA | 4.9V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V | 36 nC @ 10 V |
| Vgs (Max) | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1510 pF @ 50 V | 1510 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.1W (Ta), 8.3W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PQFN (5x6) Single Die | PQFN (5x6) Single Die |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
