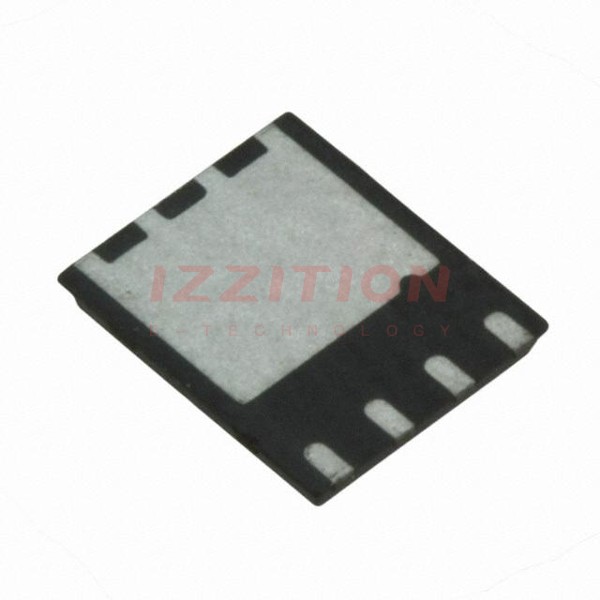

| Part Number | IRFH5025TR2PBF | IRFH5025TRPBF | IRFH5015TR2PBF | IRFH5020TR2PBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 250 V | 150 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 3.8A (Ta) | 3.8A (Ta) | 10A (Ta), 56A (Tc) | 5.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | - | - |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 5.7A, 10V | 100mOhm @ 5.7A, 10V | 31mOhm @ 34A, 10V | 55mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 150µA | 5V @ 150µA | 5V @ 150µA | 5V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 10 V | 56 nC @ 10 V | 50 nC @ 10 V | 54 nC @ 10 V |
| Vgs (Max) | - | ±20V | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2150 pF @ 50 V | 2150 pF @ 50 V | 2300 pF @ 50 V | 2290 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | 3.6W (Ta), 8.3W (Tc) | - | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
