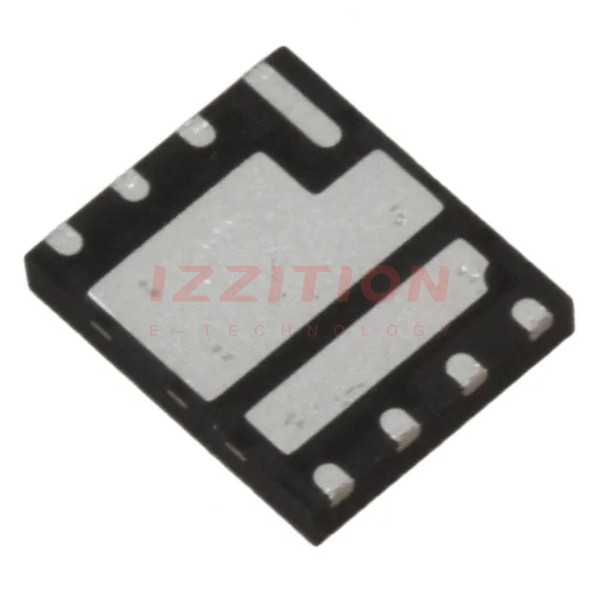

| Part Number | IRFH4253DTRPBF | IRFH4255DTRPBF | IRFH4257DTRPBF | IRFH4251DTRPBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Obsolete | Obsolete | Not For New Designs |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual), Schottky |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V | 25V | 25V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 64A, 145A | 64A, 105A | 25A | 64A, 188A |
| Rds On (Max) @ Id, Vgs | 3.2mOhm @ 30A, 10V | 3.2mOhm @ 30A, 10V | 3.4mOhm @ 25A, 10V | 3.2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 35µA | 2.1V @ 35µA | 2.1V @ 35µA | 2.1V @ 35µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V | 15nC @ 4.5V | 15nC @ 4.5V | 15nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1314pF @ 13V | 1314pF @ 13V | 1321pF @ 13V | 1314pF @ 13V |
| Power - Max | 31W, 50W | 31W, 38W | 25W, 28W | 31W, 63W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
| Supplier Device Package | PQFN (5x6) | PQFN (5x6) | Dual PQFN (5x4) | PG-TISON-8 |
