Infineon Technologies-IRFBL3703 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	260A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	7V, 10V
Rds On (Max) @ Id, Vgs:	2.5mOhm @ 76A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	209 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	8250 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.8W (Ta), 300W (Tc)
Operating Temperature:	-
Mounting Type:	Surface Mount

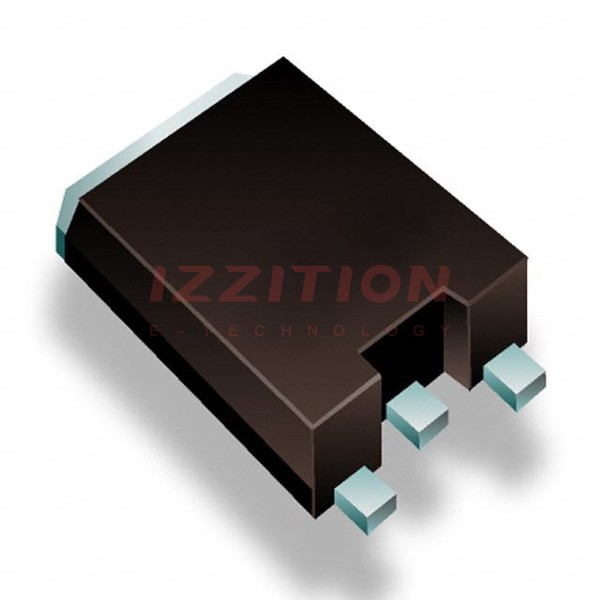

Supplier Device Package:	SUPER D2-PAK
Package / Case:	SUPER D2-PAK

Infineon Technologies IRFBL3703
