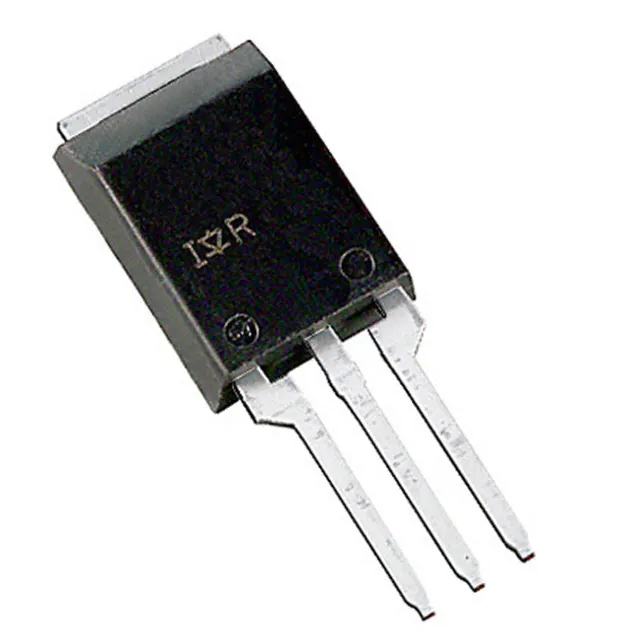

| Part Number | IRFBA1405PPBF | IRFBA1404PPBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 174A (Tc) | 206A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 101A, 10V | 3.7mOhm @ 95A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 260 nC @ 10 V | 200 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5480 pF @ 25 V | 7360 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 330W (Tc) | 300W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | SUPER-220™ (TO-273AA) | SUPER-220™ (TO-273AA) |
| Package / Case | TO-273AA | TO-273AA |
